93-02 Firebird/Camaro - Passenger Express Down

Tools Needed

  • Wire Strippers
  • Wire Crimpers
  • 10mm Wrench or Socket with Ratchet
  • 15mm Wrench or Deep well Socket with Ratchet
  • Flat Head Screwdriver
  • Phillips Head Screwdriver
  • Electrical Tape

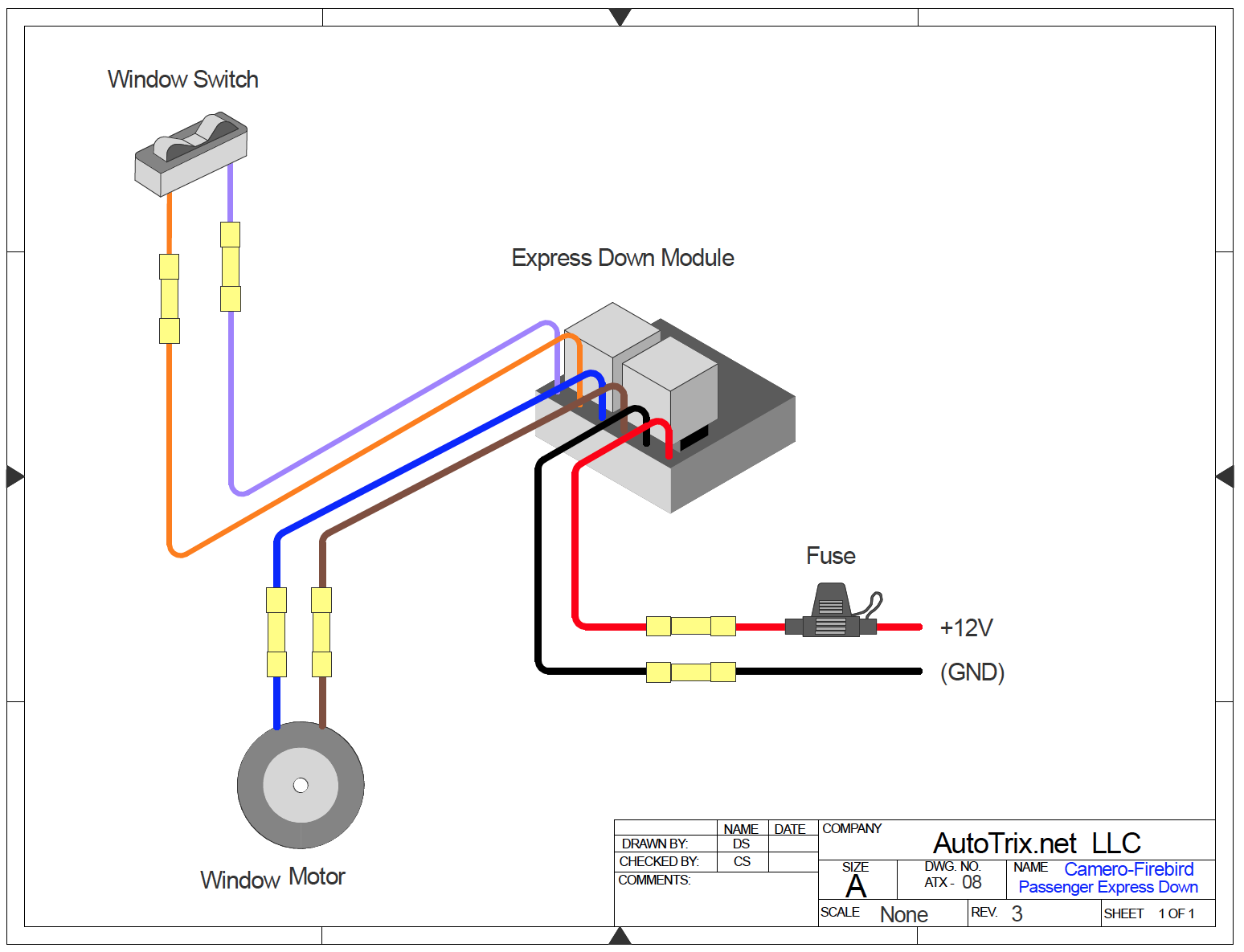

Wiring Diagram

passenger express down diagram



Install Instructions

  1. Disconnect your negative battery post and lay it aside.

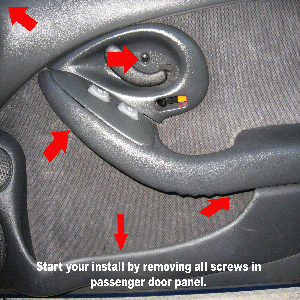

  2. Remove all five visible screws from driver door panel with a Phillips head screwdriver.step 2

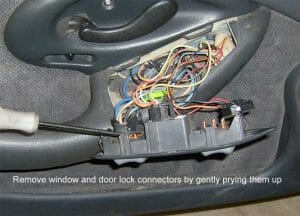

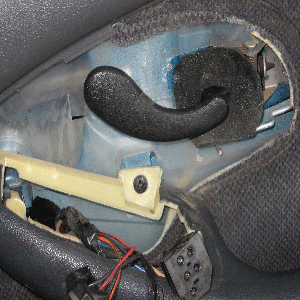

  3. Gently pry up your driver window switch bezel, separating it from the door panel. Pry the connector off the switch and bezel; remove the handle bezel and the last door panel screw.step 3a

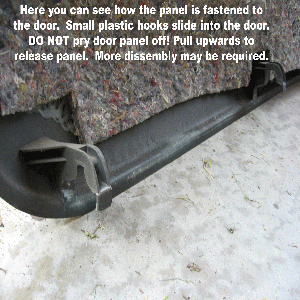

  4. Once all 6 door panel screws are removed lightly pull up on the whole door panel assembly to separate the panel from the door. The panel is held on by plastic hook tabs. * Do NOT pry door panel away from door, it slides off in an upwards motion*step 4
  5. Next remove speaker screws. Remove and unplug speaker assembly.step 5
  6. Carefully pull back plastic water guard. You do not have to completely remove.

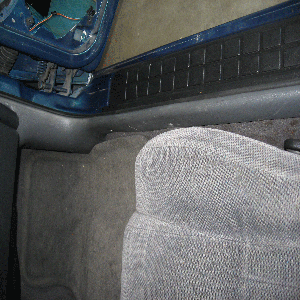

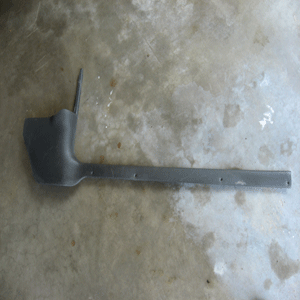

  7. Remove kick panel screws (4) and kick panel assembly. *pull kick panel toward rear of car to dislodge*step 7astep 7b

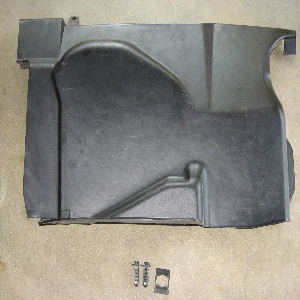

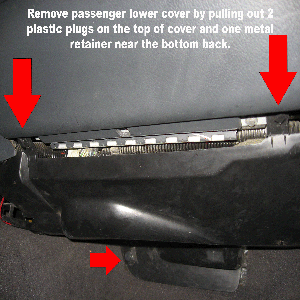

  8. Remove lower passenger console cover. (2 plastic push in tabs and one metal retainer)step 8astep 8b

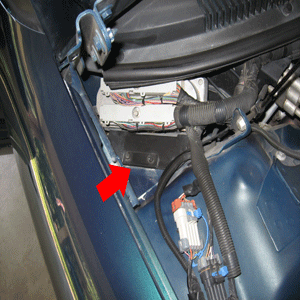

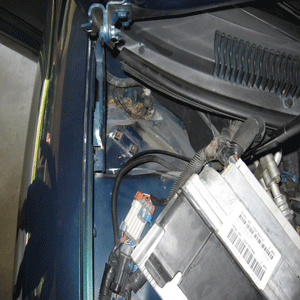

  9. Pop hood and remove PCM mounting bracket screws (2), pull PCM up and lay it aside.step 9astep 9b

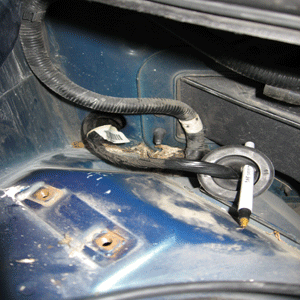

  10. Remove the firewall grommet that is now exposed. Pull it out and poke a hole into the grommet large enough for the red wire to feed though, and then re-secure grommet to firewall.step 10

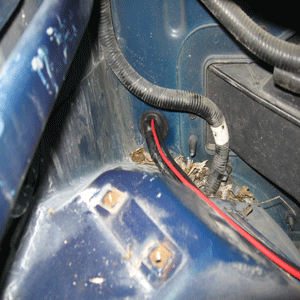

  11. Take your red wire supplied with the kit and feed it though the hole you just made in the firewall grommet. * feed it from the hood/outside area to the cab/inside car area.step 11

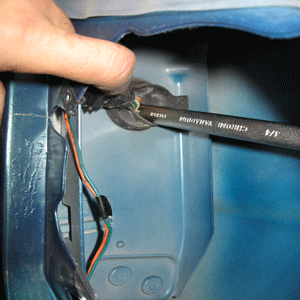

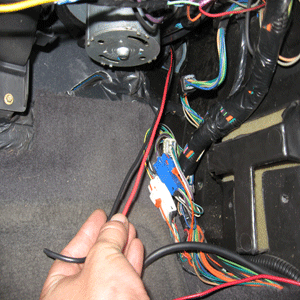

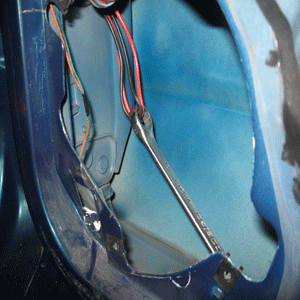

  12. Pull wire lead into cab and into passenger door; you will find a pass through behind where the kick panel was. Route the orange, violet, blue, and brown wires through this hole into the rubber tube in between the cab and the door. We were able to use a 14mm wrench to aid with feeding wires though the pass thru into the driver door. The pictures below show only 2 wires, this is just a reference to show you how to route the 4 wires you will be running into the door.step 12step 12astep 12b

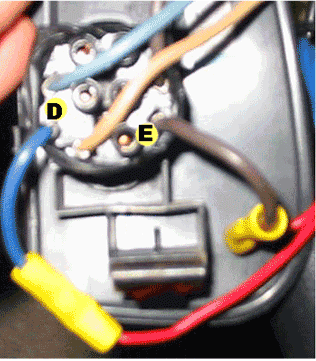

  13. Cut two wires, (both of which are on the connector for the passenger window switch) brown in cavity “E” and dark blue in cavity “D” of the window switch connector. Cut each at least 4 inches down from connector. Your window switch connector has six cavities; all cavities are labeled on the connector. A letter is usually cast into the plastic connector near the wire cavity it represents.
    step 13

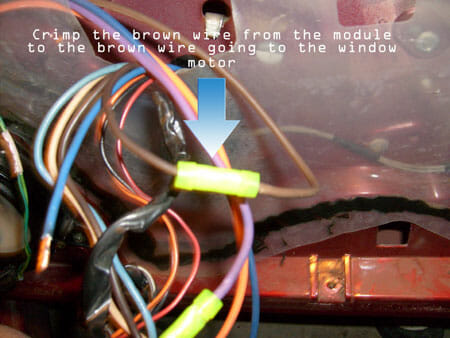

  14. Crimp / Solder the brown wire from the express down module to the brown wire going to the motor.
    step 14

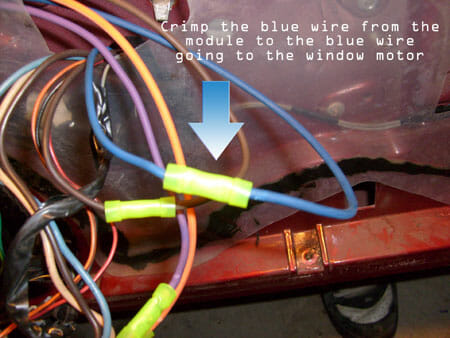

  15. Crimp / Solder the blue wire from the express down module to the blue wire going to the motor.
    step 15

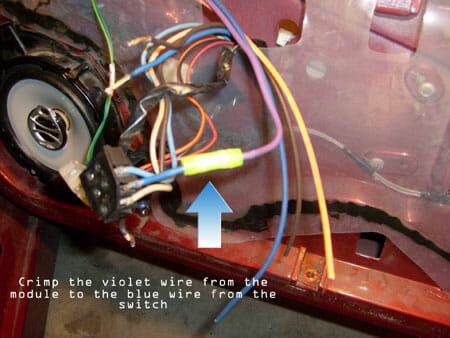

  16. Crimp / Solder the violet wire from the express down module to the blue wire attached to the switch.
    step 16

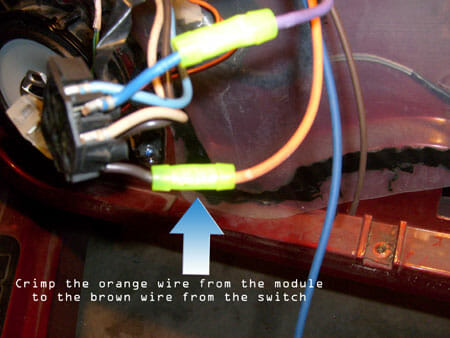

  17. Crimp / Solder the orange wire from the express down module to the brown wire attached to the switch.

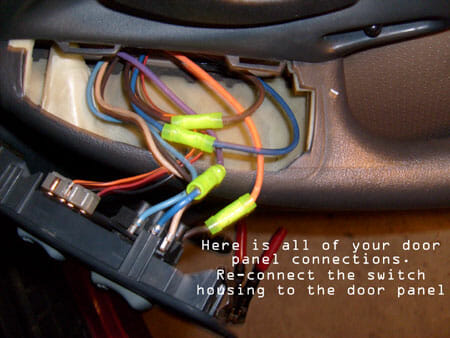

    step 17astep 17b

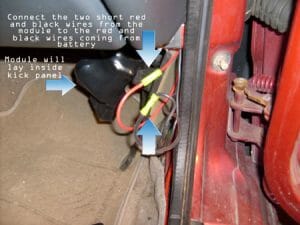

  18. Crimp / Solder the red wire from the express down module to the red wire ran from the battery. Crimp / Solder the black wire from the express down module to the black wire ran from the battery.
    step 18

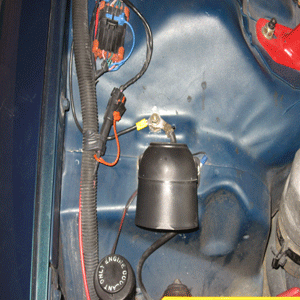

  19. Attach the eyelet terminal without insulation to your black wire and land it on your passenger wheel well. We used a factory ground stud.
    step 19
  20. 93-97 Attach your eyelet terminal to the power stud on your passenger wheel well. Attach inline fuse holder to end of positive wire. Fuse holder must be within 6 inches of power source.

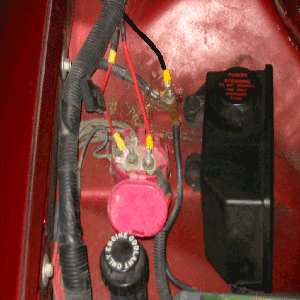

    step 22
  21. 98-02 Route your Red wire across radiator support (in factory loom) to Positive Stud on the driver’s side wheel well. Attach inline fuse holder to end of positive wire. Fuse holder must be within 6 inches of power source.

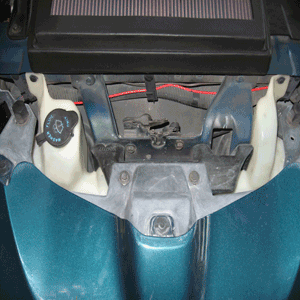

    step 21step 21a
  22. Temporarily plug in your window switch, hook up your negative battery lead, turn on your ignition and test the operation of your passenger window.
  23. Re-install PCM, kick panel, door panel, and lower console cover.
  24. If you are having any trouble with your installation, please feel free to Contact Us. You may also find posts from people who have installed our kits on www.ls1.com helpful, along with community input on your issue.
