93-02 Firebird/Camaro - Passenger Window Fix Kit

Tools Needed

  • Wire Strippers
  • Wire Crimpers
  • 10mm Wrench or Socket with Ratchet
  • 15mm Wrench or Deep well Socket with Ratchet
  • Flat Head Screwdriver
  • Phillips Head Screwdriver
  • Electrical Tape

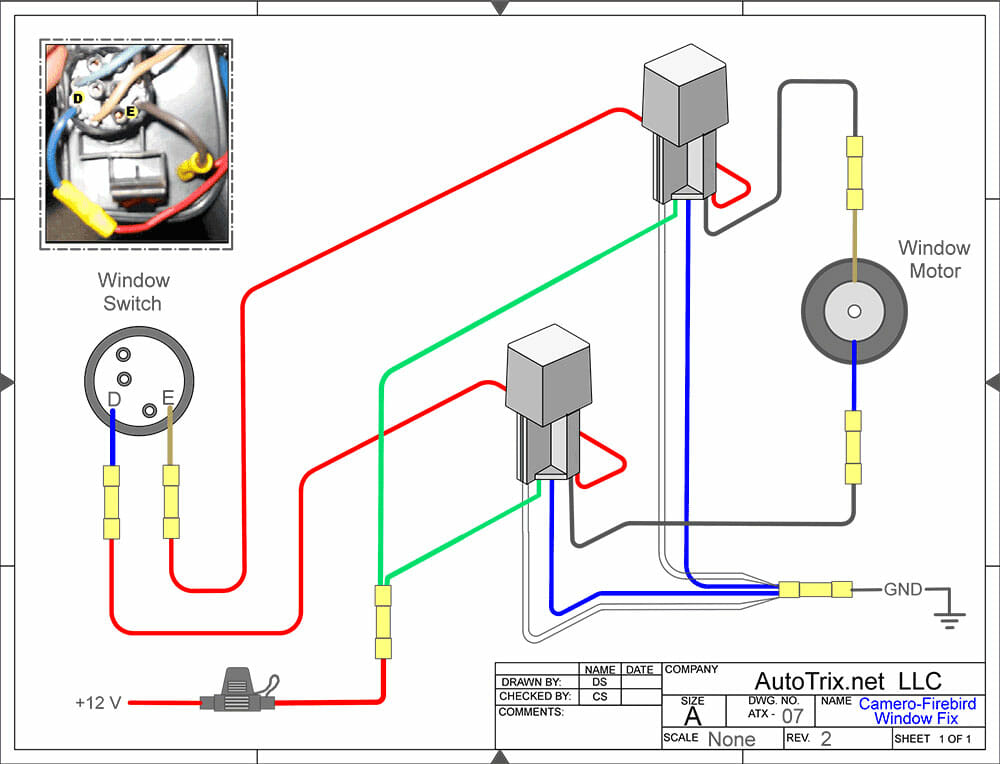

Wiring Diagram

wiring diagram

Install Instructions

  1. Disconnect your negative battery post and lay it aside.
  2. Remove all five visible screws from passenger door panel with a Phillips head screwdriver.step 2
  3. Gently pry up your passenger window switch bezel, separating it from the door panel. Pry the connector off the switch and bezel; remove the handle bezel and the last door panel screw.step 3a
  4. Once all 6 door panel screws are removed lightly pull up on the whole door panel assembly to separate the panel from the door. The panel is held on by plastic hook tabs. * Do NOT pry door panel away from door, it slides off in an upwards motion*step 4
  5. Next remove speaker screws. Remove and unplug speaker assembly.step 5
  6. Carefully pull back plastic water guard. You do not have to completely remove.
  7. Remove kick panel screws (4) and kick panel assembly. *pull kick panel toward rear of car to dislodge*step 7astep 7b
  8. Remove lower passenger console cover. (2 plastic push in tabs and one metal retainer)step 8astep 8b
  9. Pop hood and remove PCM mounting bracket screws (2), pull PCM up and lay it aside.step 9astep 9b
  10. Remove the firewall grommet that is now exposed. Pull it out and poke a hole into the grommet large enough for the red wire to feed though, and then re-secure grommet to firewall.step 10
  11. Take your red and black wires supplied with the kit and feed them though the hole you just made in the firewall grommet. * feed it from the hood/outside area to the cab/inside car area.step 11
  12. Pull wires into cab. You will find a pass through behind where the kick panel was. Route the black and red wires through this hole into the rubber tube in between the cab and the door. We were able to use a 14mm wrench to aid with feeding wires though the pass thru into the passenger door.step 12step 12astep 12b

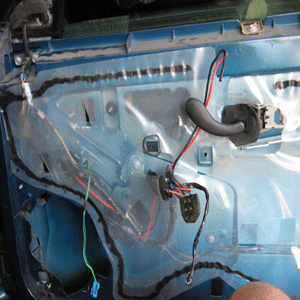

  13. Route wires along with factory wires leaving ends up with the window switch connector.Re-install your water guard and the door panel. Pull the new wires into the arm rest as you install the door panel.
    step 13a
  14. Cut two wires, (both of which are on the connector for the passenger window switch) brown in cavity “E” and dark blue in cavity “D” of the window switch connector. Cut each at least 4 inches down from connector. Your window switch connector has six cavities;all cavities are labeled on the connector. A letter is usually cast into the plastic connector near the wire cavity it represents.

    Reference the schematic at the very top of the instructions to better visualize the connections below.

    Connect the red wire from one relay dongle to the switch side of the blue wire.
    Connect the black wire from the same relay dongle to the motor side of the blue wire.

    Repeat with the other relay dongle and brown wire.

    Attach the green wire from each relay dongle to the red 12v you ran from the battery.

    Attach the blue and white wire from each dongle to the black ground wire you ran from the engine bay.

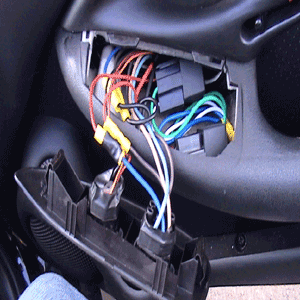

    Plug each relay into their connectors and pack them into the arm rest like the picture shows below. Make sure you cut all wires to fit inside the arm rest.
    step 13step 13b
  15. Attach the eyelet terminal without insulation to your black wire and land it on your passenger wheel well. We used a factory ground stud.
    step 19
  16. 93-97 Attach your eyelet terminal to the power stud on your passenger wheel well. Attach inline fuse holder to end of positive wire. Fuse holder must be within 6 inches of power source.
    step 22
  17. 98-02 Route your Red wire across radiator support (in factory loom) to Positive Stud on the passenger’s side wheel well. Attach inline fuse holder to end of positive wire. Fuse holder must be within 6 inches of power source.
    step 21step 21a
  18. Temporarily plug in your window switch, hook up your negative battery lead, turn on your ignition and test the operation of your passenger window.
  19. Re-install PCM, kick panel, door panel, and lower console cover.
  20. If you are having any trouble with your installation, please feel free to Contact Us. You may also find posts from people who have installed our kits on helpful, along with community input on your issue.
