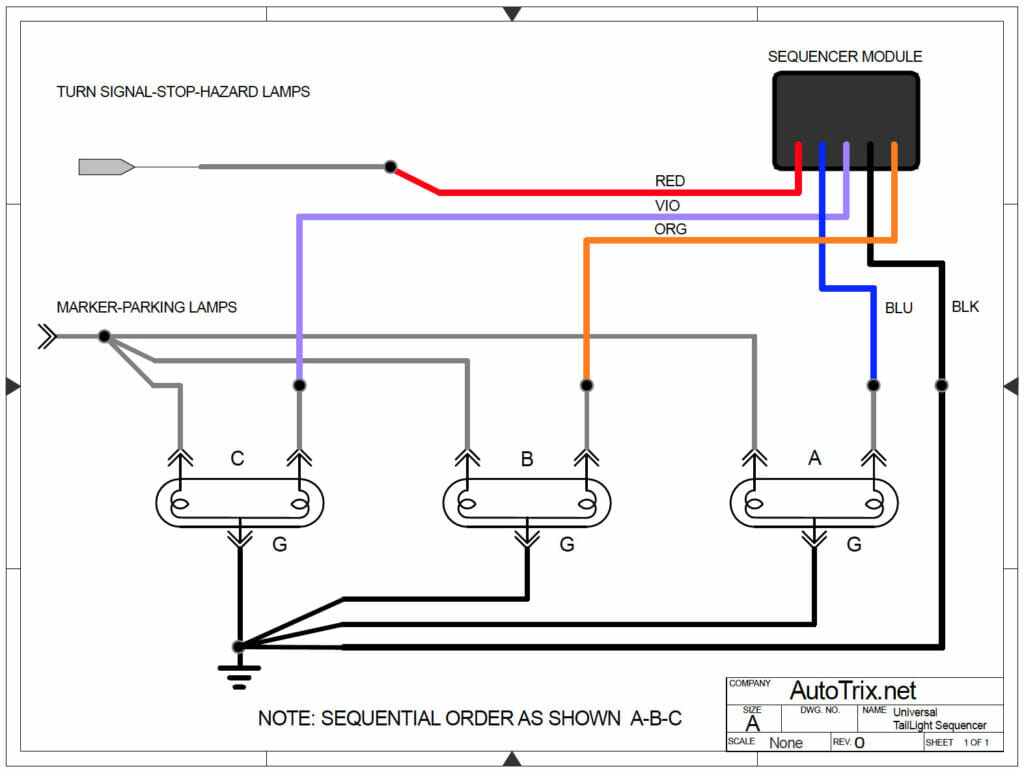

This diagram is a general installation tool for installing these sequencer modules. Our kit must be installed on a duel element circuit and can be used for two or three light sequences.
If you are installing LED Load Resistors you can refer to the combined installation diagram below.
